Shock Absorber Razor Lite Harley Davidson Sportser 12"

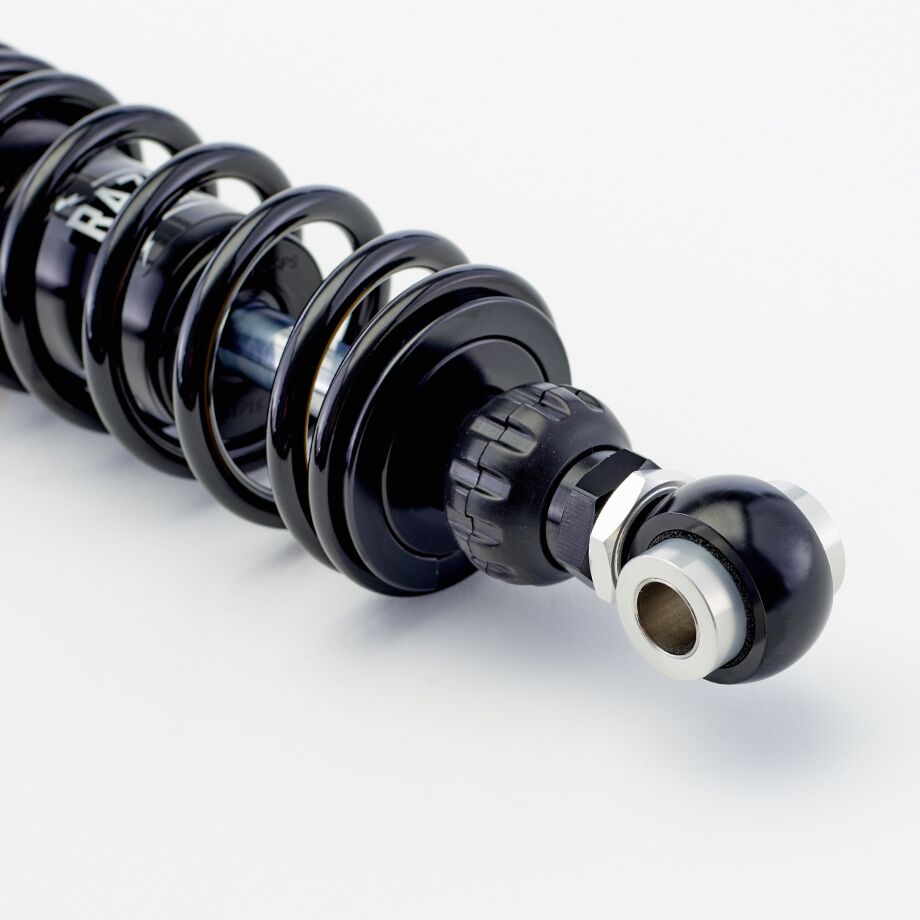

The K-Tech Razor "Lite" shocks offer refined handling and enhanced looks over the standard equipment. The Razor "Lite" features rebound damping, spring preload and length adjustment to allow owners of classic style motorcycles to customise their ride with understated looks and improved performance.

  • Increased comfort and control
  • Rebound damping adjustment
  • Spring preload adjustment
  • Length adjustment
  • Nitrogen (N2) filled
  • Anodised black finish
  • Simply bolts on to replace original equipment
  • Spring rate options available
US$842.00
SKU
283B-120-120-SPS
Technical data
SKU283B-120-120-SPS
Salable Check1
Commodity Code87141090
Weight (Kgs)3
Upper Mount TypeEye
Lower Mount TypeEye
Length Imp12''
SKU Barcode5056106152667
NoteSpring 46-170-
SKU Tolerance (+/- mm)-0/+10
Force (N)18.00
Force-2 (N)27.00
Force in Bar12.00
Length (mm)305.00
Preload (mm)18
RCU Adjustment Ways3.00
RCU Body Diameter (mm)35.00
Lower Mount Bolt Diameter (mm)12.70
RCU Rod Diameter (mm)14.00
Rebound Clicks16
Stroke (mm)60.00
Oil / Air Gap65
BrandK-Tech
Upper Mount Width (mm)32.00
Upper Mount Bolt Diameter (mm)12.70
Lower Mount Width (mm)32.00
Weight Lbs6.61
Length Inches11.90
Rcu Lbolt Dia Inches0.50
Rcu Bodydia Inches1.37
Fits to:
